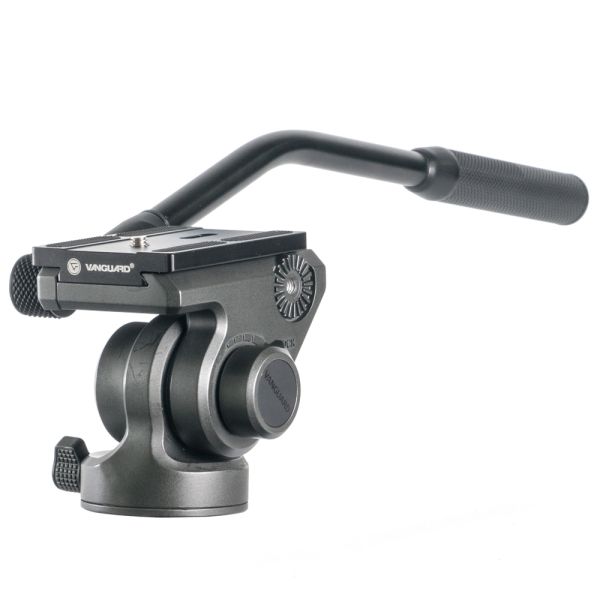

Vanguard Alta PH-114V Lightweight Video Head
- Accessories: QS-61 Quick-Shoe Included
- Base Plate Diameter; 2.3in
- Bubble Level on Head: 1
- Color: Grey
- Extended Warranty: 8 Years
- Height: 95mm
- Load Capacity: 17.6
- Panoramic Rotation: Yes
- Pan Lock: Yes
- Quick Release: Yes
- Quick Shoe: QS-61
- Quick Show Included: Yes
- Swivel 360°
- Tilt Angle (up to down) -45~90
- Tilt Range: -45° to 90°
- Warranty: 2 Years
- Weight: 1.4
The ALTA PH-114V is a lightweight video head with fluid action movements, incorporates an Arca-type quick release system and has an ergonomic long handle for smooth pans and tilts. Four lock/unlock knobs are positioned ergonomically to provide easy access for setting up the pan bar, locking your gear securely, and providing adjustments for pans and tilts. The Arca-type quick release plate QS-61 is 80mm/3.2in. long has 2 screws (1 static, 1 sliding) and allows for gear to be positioned to move forward or back on the video head easily allowing you to balance gear on the top of the tripod! The second screw acts like an anti-twist pin.
The built-in rosettes along either side of the head allow for mounting of one pan bar or if desired a second pan bar can be added for additional control.
Features- Lightweight Magnesium alloy construction provides long-lasting performance and durability
- Fluid action movements
- Ergonomic long handle for smooth pans and tilts
- Bubble level for precise leveling
- High working load performance 17.6lbs./8kg
- Arca-type quick release system with a built-in safety pin
- 58mm Pan Head Base
- Easily Connects to all types of tripods using the 3/8”-16 receiver
